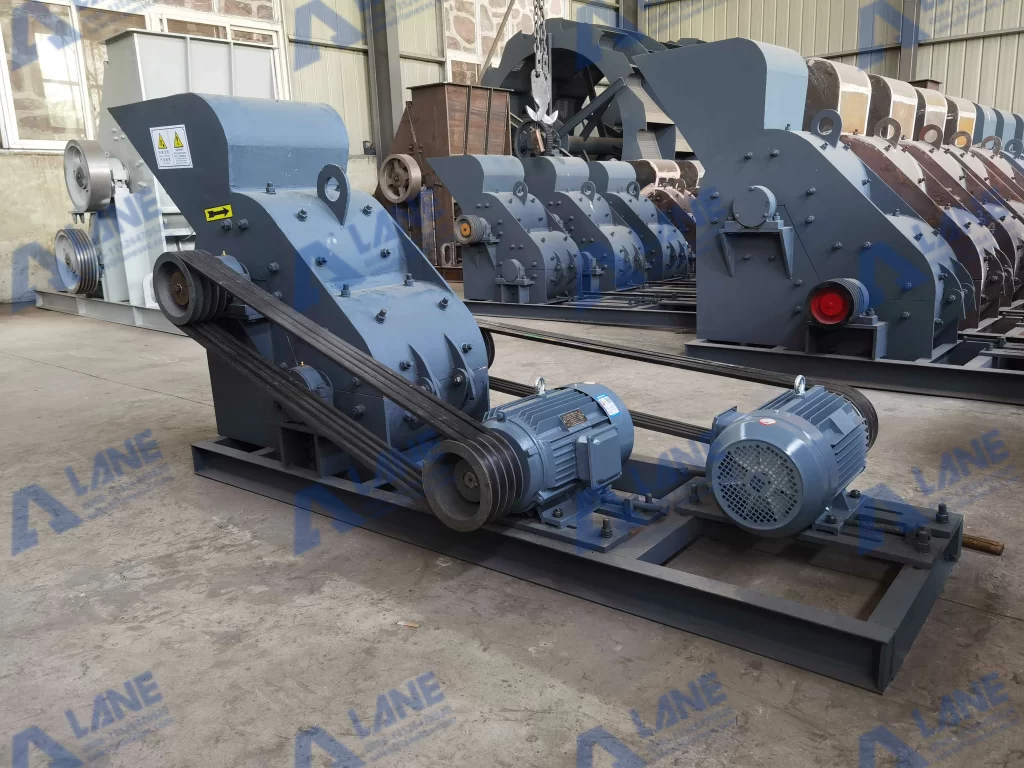

The Double Stage Crusher is a highly efficient crushing machine designed for materials with high moisture content and low hardness, such as wet soil, shale, coal gangue, kitchen waste, organic fertilizer materials, and various agricultural residues. Equipped with two connected rotors, the machine achieves ultra-fine crushing with stable output, making it ideal for fertilizer plants, biomass processing, brick factories, and waste recycling industries. Lane can customize a dedicated double stage crusher for you to meet any of your needs.
| Model | Output(t/h) | Size（mm） | Machine Weight | Power(kw) |
| LACD-600*400 | 10-15 | 2600*950*1500 | 1t | 18.5*2 |
| LACD-600*600 | 15-20 | 2500*1170*1500 | 1.3t | 22*2 |
| LACD-600*800 | 20-30 | 2800*1350*1700 | 1.8t | 30+22 |

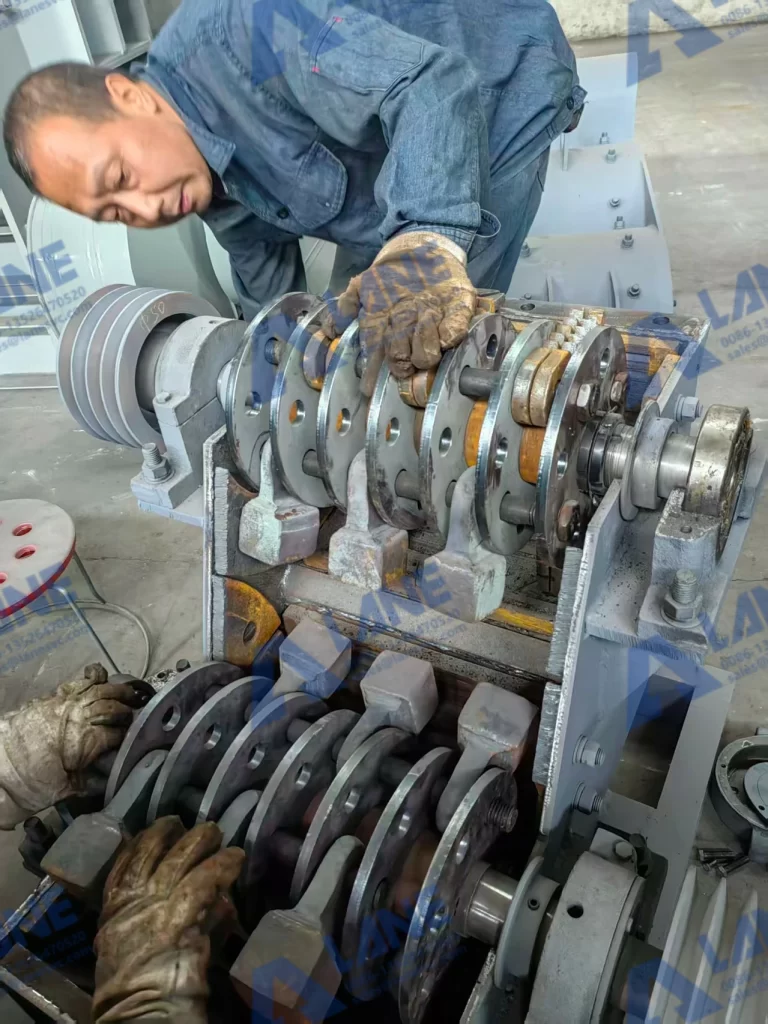

The machine features two sets of rotors arranged in series.
First-stage rotor breaks down large clumps of material into smaller particles.
The partially crushed material then immediately enters the second-stage rotor, where it is further pulverized at high speed.
Inside the crushing chamber, materials collide with hammers and with each other in reverse directions, achieving “hammer-to-material” and “material-to-material” crushing.
The final powder is discharged directly without a screen, ensuring smooth operation even with high-moisture materials.
This dual-rotor cascading action provides exceptional fine-pulverizing performance and prevents clogging.
No Clogging, No Screen Needed
Perfect for wet, sticky, high-moisture materials. Continuous discharge without blockage.
Ultra-Fine Crushing
Two-stage rotor design ensures high-speed secondary impact for finer output sizes.
High Efficiency & Energy Saving
Double-impact mechanism increases crushing ratio and reduces energy loss.
Low Hammer Wear
Material-on-material collision reduces direct impact on hammers, extending service life.
Stable and Smooth Operation
Compact structure, low vibration, and reliable continuous performance.
Wide Application
Ideal for organic fertilizer production, bio-waste recycling, coal processing, shale crushing, and agricultural waste reduction.
World-class and Energy-saving Operation, Factory Price & Fast Delivery.
